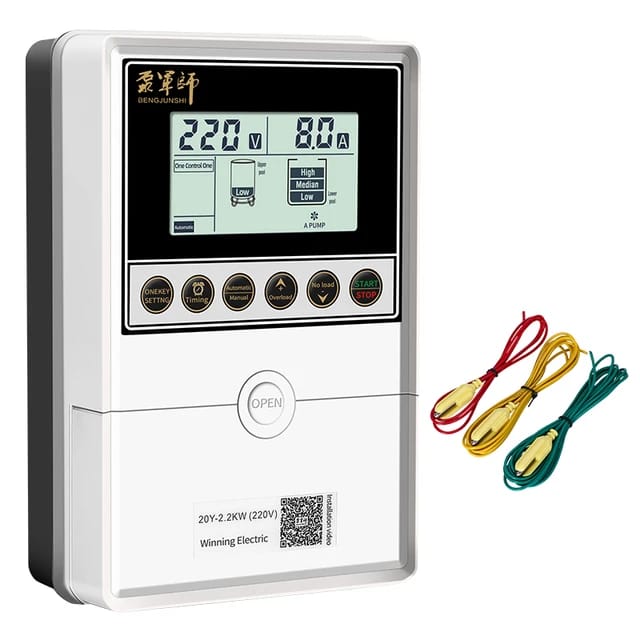

Intelligent Water Pump Controller 20Y-2.2kw 220V AC
Original price was: BDT 7,000.BDT 5,499Current price is: BDT 5,499.
You Save: BDT 1,501 (21%)In Stock
Free Shipping
On Orders Over 3000TK
Description
Product details of Intelligent Water Pump Controller 20Y-2.2kw 220V AC
- Type: 20Y
- Model:20Y-2.2KW
- Rated Power: 0.37-2.2KW(0.5-3HP)
- Max Current: 12A
- Rated Input Voltage: Single Phase, 220V AC±10%, 50Hz
- Qty.of Control Pump: Single pump
- Display: LCD
- Signal Transmission Mode: 1) Level float switch 2) Level probe 3) Pressure switch 4) Electric contact pressure gauge
- Water Level Indication: High/Middle/Low
- Max.Control Distance: ≤2000m without electric solid and electromagnetic fields
- Over/under-voltage Range:176V-264V(adjustableUnder)
- Protections: 1) Pump stalled protection 2) Dry run protection 3) Over-load protection 4) Under-voltage protection 5) Over-voltage protection 6) Open phase protection 7) Short circuit protection
- Main Functions: 1) Time setting 2) Fault detection 3) Anti-rust inspection 4) Automatic restart after power recovery
- Product Size: 210*139*65mm
- Working temperature: -25ºC– +55ºC
- Working humidity: 20%–90%RH, no drips concreted
- Degree of protection: IP22
- Install Position: Wall mounting
- Application: 1) Agricultural Irrigation 2) Waste Water Treatment 3) Pressure Booster System 4) Drainage System 5) Flood Control 6) Water Tans 7) Cooling Tower 8) Fishing Boat.
- Seller Warranty: 02 years
Product descriptions from the supplier
Product DescriptionThe 20Y automatic pump controller is specially designed for 1-phase Home water pumps 0.37-3KW. The Pump Controller will stop pumps when the Tank water level is high and it will start to work when the tank water is low. Suitable for Surface pumps, Sewage Pumps, Booster pumps, Submersible pumps, etc.
Specifications of Booster Pump Controller
Type 20Y Model 20Y-2.2KW 20Y-3KW Rated Power 0.37-2.2KW 0.37-3KW Rated Input Voltage 220V/110V@50Hz or 60Hz Qty. of Controlled Pump Single pump Display LCD Signal Transmission Mode Level float switch
Level probe
Pressure switch
Electric contact pressure gaugeWater Level Indication High/Middle/Low Max.Control Distance ≤2000m without strong electric and electromagnetic fields Over/under-voltage Range 176V-264V(adjustable) Main Functions 1, Pressure control: electric contact pressure gauge or pressure switch
2, Water level control: probes or float switch
3, Time setting ON/OFF
4, Multifunction display – visualization of voltage, motor current, upper/lower tank status, and alarms
5, Upper tank for water supply control and lower tank for drainage control
6, Operation mode: AUTO/MANUAL switch
7, Fault indication: fault tracking, last 10 fault reason display, audio/light alarms.
8, Anti-card protection, long-term non-use of the pump,15 days to start once.
9, Setting protection current for motor overload/no-load, no-load
delay restart time adjustable.
10, Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection.
11, Automatic restart after power failure recovery.
12, Push the button for adjustments and set up from the display
13, Restore factory setting: press both “Overload” and “NO-Load” for 3 seconds.
14, Automatic re-starting pump from dry running, restart time range 0-720 minutes adjustable.Working temperature
Working humidity
Degree of protection
Install position-25ºC– +80ºC
20%–90%RH, no drips concreted
IP22
Wall mountingProduct Size 210*139*65mm Package Box size:21.9*7.4*14.7cm
Carton size:45.5*31.5*32cm
PCS/CTN:16Parameter Setting and Instruction
P01–Over-load protection current setting
P02–No-load protection current setting
P03–Time setting ON
P04–Time Setting OFF
P05–Restart time setting after no-load protection
P06–Dual pump alternation time settingP07–Over-voltage protection setting
P08–Under-voltage protection setting
P09–LCD backlight OFF time setting
P12–No load protection trip delay time settingP13–Overload protection trip delay time setting
